Sanitube bevel seat fittings provide secure, leak-tight connection sing external Acme threads. Designed to work with metal-to-metal seat, bevel seat gasket may be sed for dditional security.

Â
| Size(Tube OD) | Part Number | Dimensions | |||
| A | B | ||||
| 1Â Â “ | 13H-1 | 0.906 | 1.812 | ||
| 1-1/2″ | 13H-150 | 0.968 | 2.406 | ||
| 2Â Â “ | 13H-2 | 1.062 | 3. | ||
| 2-1/2″ | 13H-250 | 1.187 | 3.594 | ||
| 3Â Â “ | 13H-3 | 1.281 | 4.188 | ||
| 4Â Â “ | 13H-4 | 1.5 | 5.438 | ||

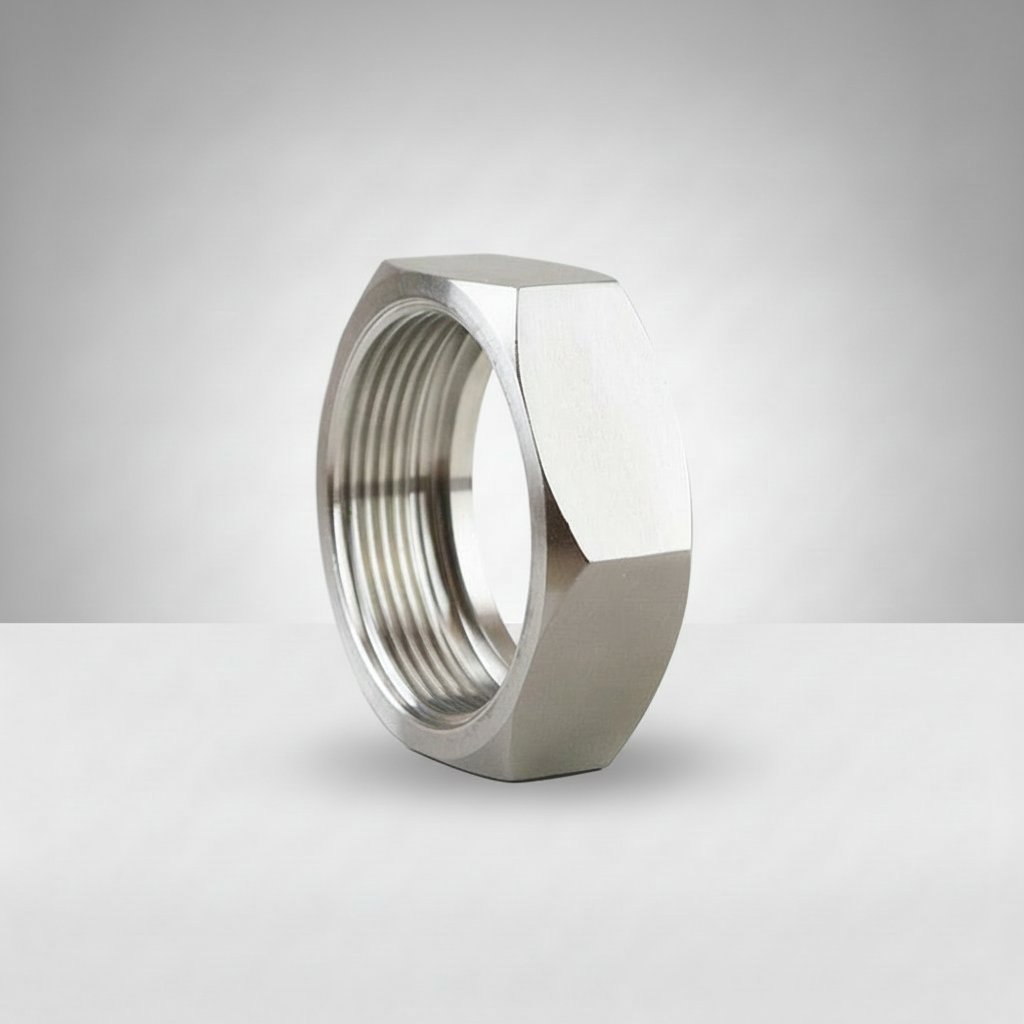

 Notes:• All Hex Nuts re T304 Stainless Steel.• 4 PSI maximum tolerance.
| Weight | 1 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
| Alloy | |
| Size (Tube OD) | 1-1/2", 1", 2-1/2", 2", 3", 4" |
