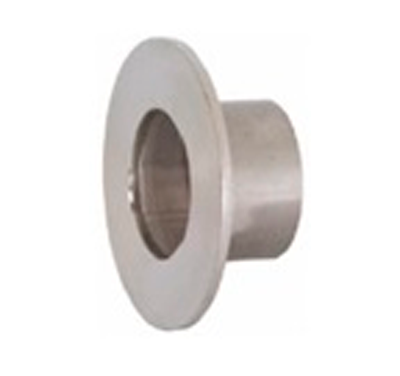

Manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications, Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.
| Size (Tube OD) | Part Number | Dimensions | ||||||
| 304 | 316L | A | B | C | D | |||
| 1/2″ | — | 14VB6-050 | 1.375 | 1.625 | 0.065 | 0.500 | ||
| 3/4″ | — | 14VB6-075 | 1.438 | 1.688 | 0.065 | 0.750 | ||
| 1Â Â “ | — | 14VB6-100 | 1.625 | 2.000 | 0.065 | 1.000 | ||
| 1-1/2″ | — | 14VB6-150 | 1.750 | 2.875 | 0.065 | 1.500 | ||
| 2Â Â “ | — | 14VB6-200 | 1.500 | 3.625 | 0.065 | 2.000 | ||
| 2-1/2″ | — | 14VB6-250 | 2.000 | 4.125 | 0.065 | 2.500 | ||
| 3Â Â “ | — | 14VB6-300 | 2.250 | 5.000 | 0.065 | 3.000 | ||
| 4Â Â “ | — | 14VB6-400 | 2.625 | 6.187 | 0.084 | 4.000 | ||
| 6Â Â “ | — | 14VB6-600 | 3.000 | 8.500 | 0.109 | 6.000 | ||
| 8Â Â “ | — | 14VB6-800 | 3.000 | 10.625 | 0.109 | 8.000 | ||
Notes:
• Compatible with 1/2″ Thick Tube (38SL) Flanges.
| Alloy |
|---|
Sanitube bevel seat fittings provide a secure, leak-tight connection using external Acme threads. Designed to work with a metal-to-metal seat, a bevel seat gasket may be used for additional security.
Sanitube bevel seat fittings provide a secure, leak-tight connection using external Acme threads. Designed to work with a metal-to-metal seat, a bevel seat gasket may be used for additional security.
