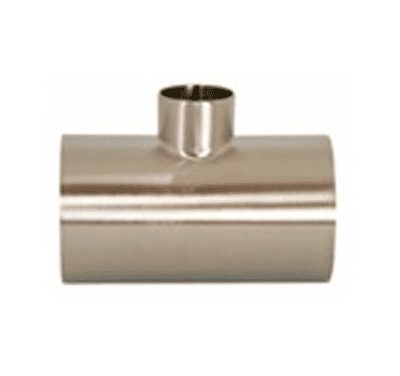

Manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications, Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.
| Size (Tube OD) | Part Number | Dimensions | |||||||
| 304 | 316L | A | B | C | D | Wall | |||
| 3/4″ | x | 1/2″ | — | 7WRT6P-075050 | 2.000 | 2.000 | 0.750 | 0.500 | 0.065 |
| 1 “ | x | 1/2″ | — | 7WRT6P-100050 | 2.375 | 2.375 | 1.000 | 0.500 | 0.065 |
| 1 “ | x | 3/4″ | — | 7WRT6P-150075 | 2.375 | 2.375 | 1.000 | 0.750 | 0.065 |
| 1-1/2″ | x | 1/2″ | — | 7WRT6P-150050 | 2.375 | 2.375 | 1.500 | 0.750 | 0.065 |
| 1-1/2″ | x | 3/4″ | — | 7WRT6P-150075 | 2.375 | 2.375 | 1.500 | 0.750 | 0.065 |
| 1-1/2″ | x | 1 “ | 7WRT4P-150100 | 7WRT6P-150100 | 1.656 | 1.375 | 1.500 | 1.000 | 0.065 |
| 2 “ | x | 1/2″ | 7WRT4P-200050 | 7WRT6P-200050 | 2.625 | 2.625 | 2.000 | 0.500 | 0.065 |
| 2 “ | x | 3/4″ | 7WRT4P-200075 | 7WRT6P-200075 | 2.625 | 2.625 | 2.000 | 0.7500 | 0.065 |
| 2 “ | x | 1 “ | 7WRT4P-200100 | 7WRT6P-200100 | 2.062 | 1.625 | 2.000 | 1.000 | 0.065 |
| 2 “ | x | 1-1/2″ | 7WRT4P-200150 | 7WRT6P-200150 | 2.062 | 1.906 | 2.000 | 1.500 | 0.065 |
| 2-1/2″ | x | 1 “ | 7WRT4P-250100 | 7WRT6P-250100 | 2.156 | 2.156 | 2.500 | 1.500 | 0.065 |
| 2-1/2″ | x | 1-1/2″ | 7WRT4P-250150 | 7WRT6P-250150 | 2.344 | 2.156 | 2.500 | 1.500 | 0.065 ADD |
| 2-1/2″ | x | 2 “ | 7WRT4P-250200 | 7WRT6P-250200 | 2.344 | 2.312 | 2.500 | 2.000 | 0.065 |
| 3 “ | x | 1 “ | 7WRT4P-300100 | 7WRT6P-300100 | 3.250 | 3.500 | 3.000 | 1.000 | 0.065 |
| 3 “ | x | 1-1/2″ | 7WRT4P-300150 | 7WRT6P-300150 | 2.594 | 2.406 | 3.000 | 1.500 | 0.065 |
| 3 “ | x | 2 “ | 7WRT4P-300200 | 7WRT6P-300200 | 2.594 | 2.562 | 3.000 | 2.000 | 0.065 |
| 3 “ | x | 2-1/2″ | 7WRT4P-300250 | 7WRT6P-300250 | 2.594 | 2.594 | 3.000 | 2.500 | 0.065 |
| 4 “ | x | 1 “ | 7WRT4P-400100 | 7WRT6P-400100 | 3.438 | 4.000 | 4.000 | 1.000 | 0.083 |
| 4 “ | x | 1-1/2″ | 7WRT4P-400150 | 7WRT6P-400150 | 3.438 | 2.906 | 4.000 | 1.500 | 0.083 |
| 4 “ | x | 2 “ | 7WRT4P-400200 | 7WRT6P-400200 | 3.438 | 3.062 | 4.000 | 2.000 | 0.083 |
| 4 “ | x | 2-1/2″ | 7WRT4P-400250 | 7WRT6P-400250 | 3.438 | 3.094 | 4.000 | 2.500 | 0.083 |
| 4 “ | x | 3 “ | 7WRT4P-400300 | 7WRT6P-400300 | 3.438 | 3.094 | 4.000 | 3.000 | 0.083 |
| 6 “ | x | 2 “ | 7WRT4P-600200 | 7WRT6P-600200 | 5.625 | 5.125 | 6.000 | 2.000 | 0.109 |
| 6 “ | x | 3 “ | 7WRT4P-600300 | 7WRT6P-600300 | 5.625 | 4.875 | 6.000 | 3.000 | 0.109 |
| 6 “ | x | 4 “ | 7WRT4P-600400 | 7WRT6P-600400 | 5.625 | 5.125 | 6.000 | 4.000 | 0.109 |
| 8 “ | x | 2 “ | 7WRT4P-800200 | 7WRT6P-800200 | 7.000 | 6.625 | 8.000 | 2000 | 0.109 |
| 8 “ | x | 3 “ | 7WRT4P-800300 | 7WRT6P-800300 | 7.000 | 6.625 | 8.000 | 3000 | 0.109 |
| 8 “ | x | 4 “ | 7WRT4P-800400 | 7WRT6P-800400 | 7.000 | 6.625 | 8000 | 4.000 | 0.109 |
| 8 “ | x | 6 “ | 7WRT4P-800600 | 7WRT6P-800600 | 7.000 | 6.625 | 8.000 | 6.000 | 0.109 |
Sanitube bevel seat fittings provide a secure, leak-tight connection using external Acme threads. Designed to work with a metal-to-metal seat, a bevel seat gasket may be used for additional security.
