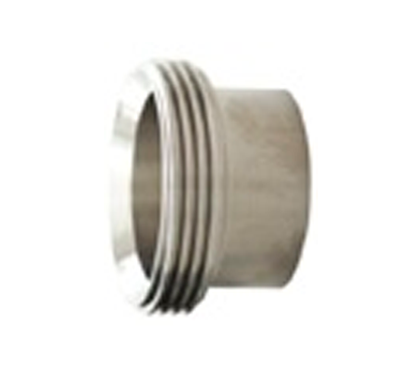

Sanitube bevel seat fittings provide a secure, leak-tight connection using external Acme threads. Designed to work with a metal-to-metal seat, a bevel seat gasket may be used for additional security.
| Size (Tube OD) |
Part Number | Dimensions | ||||
| 304 | 316L | A | B | |||
| 1 “ | 15A4-100 | 15A6-100 | 1.375 | 0.870 | ||
| 1-1/2″ | 15A4-150 | 15A6-150 | 1.500 | 1.370 | ||
| 2 “ | 15A4-200 | 15A6-200 | 1.500 | 1.870 | ||
| 2-1/2″ | 15A4-250 | 15A6-250 | 1.750 | 2.370 | ||
| 3 “ | 15A4-300 | 15A6-300 | 1.750 | 2.870 | ||
| 4 “ | 15A4-400 | 15A6-400 | 1.750 | 3.834 | ||
| Alloy |
|---|
Sanitube bevel seat fittings provide a secure, leak-tight connection using external Acme threads. Designed to work with a metal-to-metal seat, a bevel seat gasket may be used for additional security.
