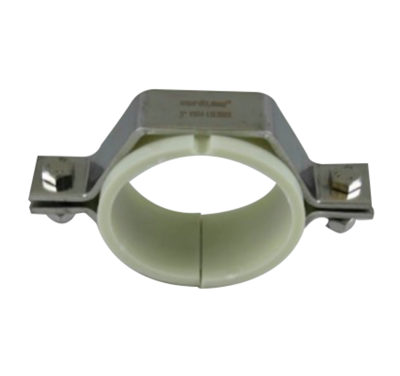

Sanitube’s stainless steel hex hangers offer a cost-effective means for hanging or securing tubing lines. Their versatile configuration allows them to either be suspended from a tube or mounted directly to a surface.
• Hanger base is T304 Stainless Steel.
• Insert material is Polypropylene.
• Sleeve maximum temperature: 230 F.
| Size (Tube OD) | Part Number | Dimensions | |||
| A | B | ||||
| 1/2″ | T24-050 | 2.800 | 1.150 | ||
| 3/4″ | T24-075 | 2.800 | 1.150 | ||
| 1 “ | T24-100 | 3.425 | 1.450 | ||
| 1-1/2″ | T24-150 | 4.000 | 2.125 | ||
| 2 “ | T24-200 | 4.500 | 2.500 | ||
| 2-1/2″ | T24-250 | 4.950 | 3.125 | ||
| 3 “ | T24-300 | 5.500 | 3.750 | ||
| 4 “ | T24-400 | 6.950 | 4.750 | ||
| 6 “ | T24-600 | 9.250 | 6.625 | ||
| 8 “ | T24-800 | 11.500 | 8.625 | ||
