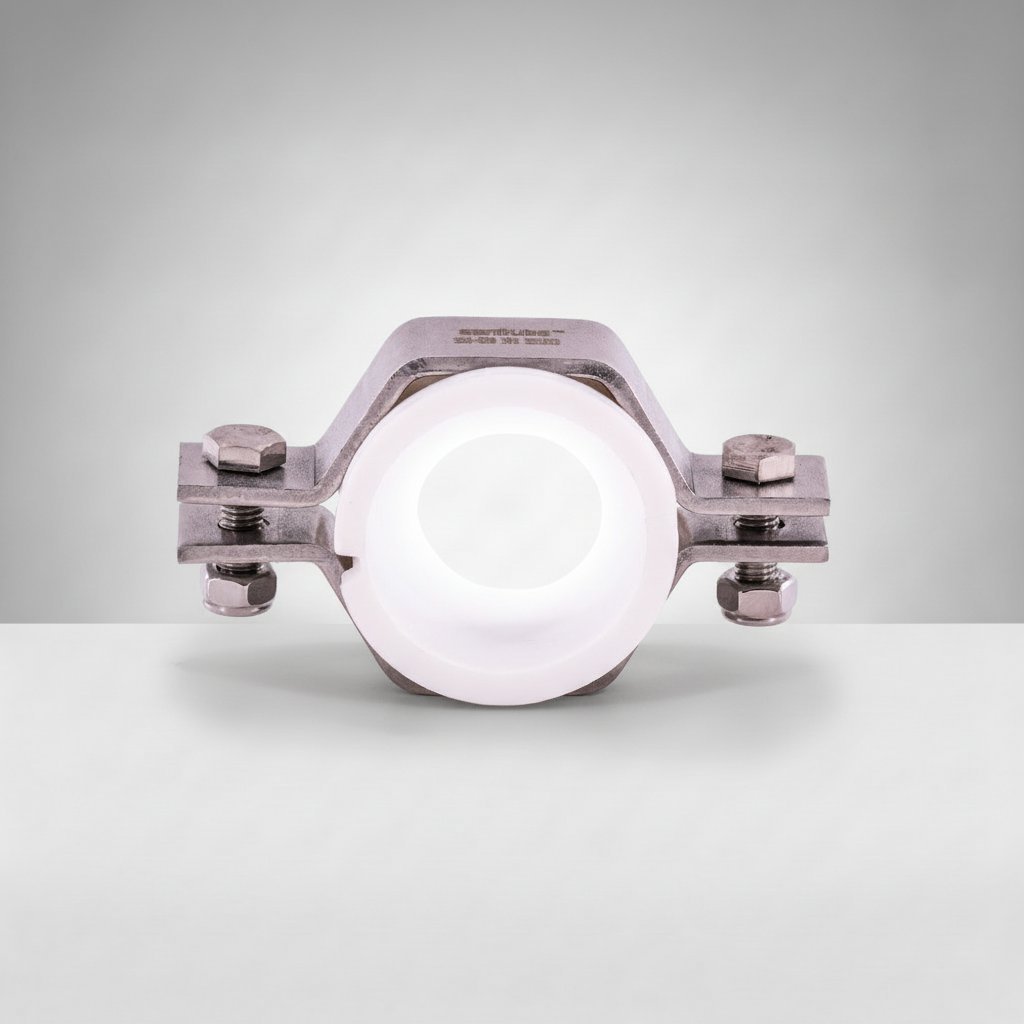

Sanitube’s stainless steel hex hangers offer cost-effective means for hanging or securing tubing lines. Their versatile configuration llows them to either be suspended from tube or mounted directly to surface.
• Hanger base is T304 Stainless Steel.• Insert material is Polypropylene.• Sleeve maximum temperature: 23 F.
| Size(Tube OD) | Part Number | Dimensions | |||
| A | B | ||||
| 1/2″ | T24-050 | 2.8 | 1.150 | ||
| 3/4″ | T24-075 | 2.8 | 1.150 | ||
| 1 “ | T24-1 | 3.425 | 1.450 | ||
| 1-1/2″ | T24-150 | 4. | 2.125 | ||
| 2 “ | T24-2 | 4.5 | 2.5 | ||
| 2-1/2″ | T24-250 | 4.950 | 3.125 | ||
| 3 “ | T24-3 | 5.5 | 3.750 | ||
| 4 “ | T24-4 | 6.950 | 4.750 | ||
| 6 “ | T24-6 | 9.250 | 6.625 | ||
| 8 “ | T24-8 | 11.5 | 8.625 | ||
