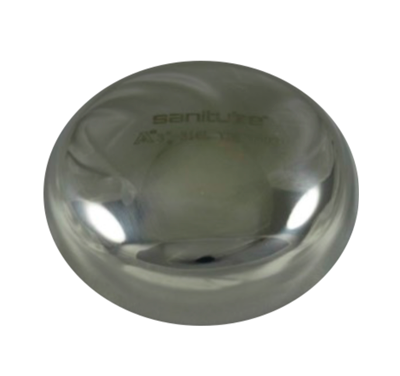

Manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications, Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.
| Size (Tube OD) | Part Number | Dimensions | |||
| 304 | 316L | A | |||
| 1Â Â “ | 16W4P-100 | 16W6P-100 | 0.375 | ||
| 1-1/2″ | 16W4P-150 | 16W6P-150 | 0.562 | ||
| 2Â Â “ | 16W4P-200 | 16W6P-200 | 0.750 | ||
| 2-1/2″ | 16W4P-250 | 16W6P-250 | 1.000 | ||
| 3Â Â “ | 16W4P-300 | 16W6P-300 | 1.250 | ||
| 4Â Â “ | 16W4P-400 | 16W6P-400 | 1.500 | ||
| 6Â Â “ | 16W4P-600 | 16W6P-600 | 1.875 | ||
| 8Â Â “ | — | 16W6P-800 | 2.688 | ||
Sanitube bevel seat fittings provide a secure, leak-tight connection using external Acme threads. Designed to work with a metal-to-metal seat, a bevel seat gasket may be used for additional security.
