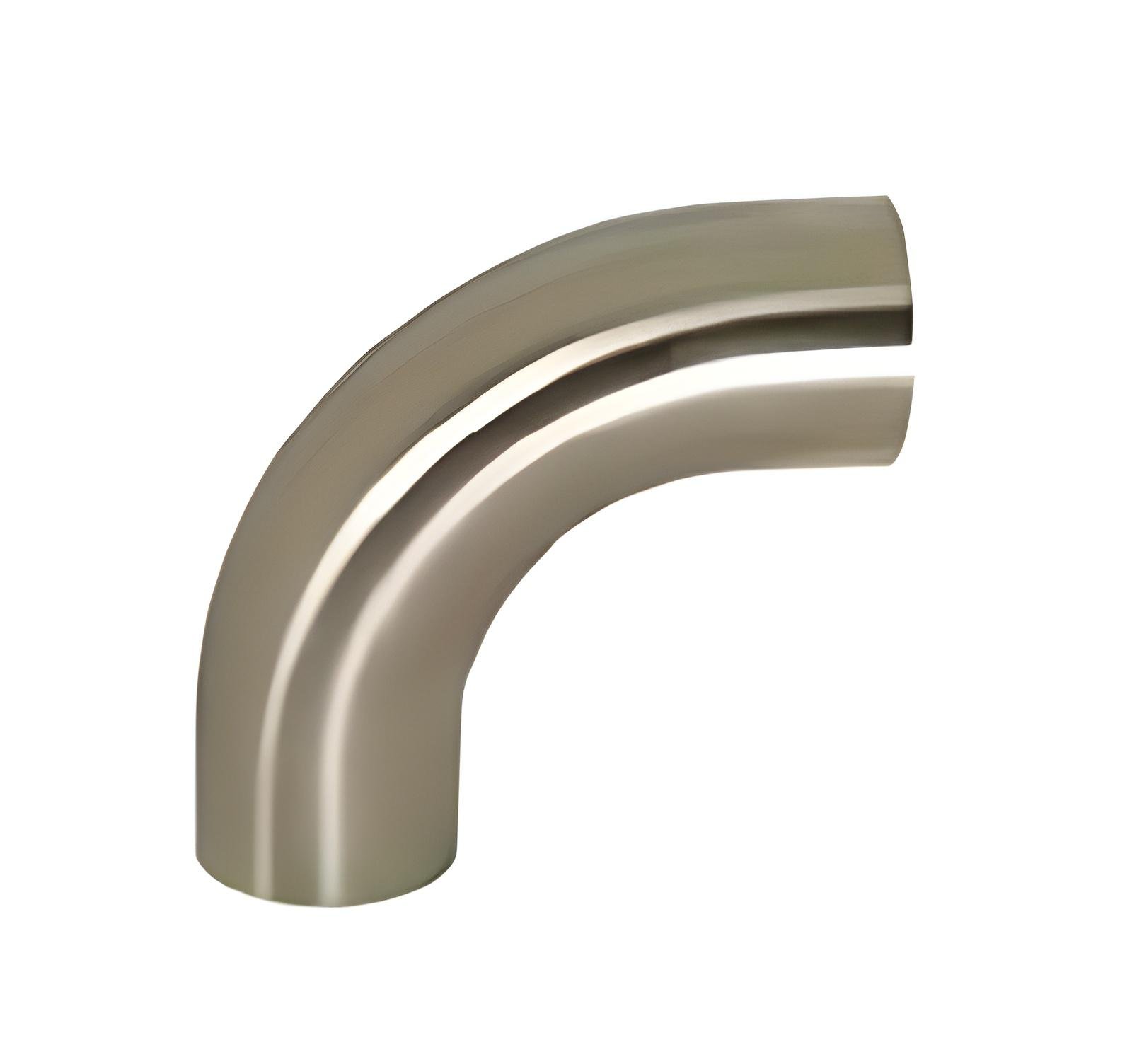

Manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications, Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.
| Size (Tube OD) | Part Number | Dimensions | |||||
| 304 | 316L | A | R | Wall | |||
| 1/2″ | — | L2S6P-050 | 3.000 | 1.125 | 0.065 | ||
| 3/4″ | — | L2S6P-075 | 3.000 | 1.125 | 0.065 | ||
| 1 “ | L2S4P-100 | L2S6P-100 | 2.062 | 1.500 | 0.065 | ||
| 1-1/2″ | L2S4P-150 | L2S6P-150 | 2.937 | 2.250 | 0.065 | ||
| 2 “ | L2S4P-200 | L2S6P-200 | 4.062 | 3.000 | 0.065 | ||
| 2-1/2″ | L2S4P-250 | L2S6P-250 | 5.187 | 3.750 | 0.065 | ||
| 3 “ | L2S4P-300 | L2S6P-300 | 6.312 | 4.500 | 0.065 | ||
| 4 “ | L2S4P-400 | L2S6P-400 | 8.312 | 6.000 | 0.083 | ||
| 6 “ | L2S4P-600 | L2S6P-600 | 11.250 | 9.000 | 0.109 | ||
Sanitube bevel seat fittings provide a secure, leak-tight connection using external Acme threads. Designed to work with a metal-to-metal seat, a bevel seat gasket may be used for additional security.
