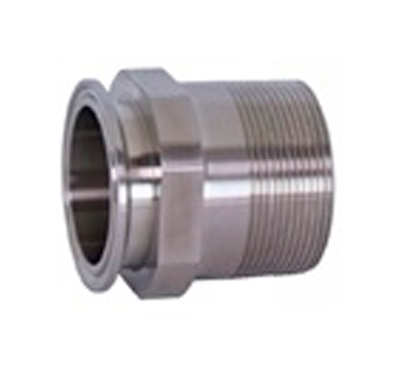

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection.
| Size (OD and NPT) |
Part Number | Dimensions | ||||
| 304L | 316L | A | B | |||
| 1/2 “ | — | 21MP6-050 | 1.625 | 0.782 | ||
| 3/4 “ | — | 21MP6-075 | 1.787 | 0.794 | ||
| 1 “ | 21MP4-100 | 21MP6-100 | 2.250 | 0.985 | ||
| 1-1/2″ | 21MP4-150 | 21MP6-150 | 2.250 | 1.025 | ||
| 2 “ | 21MP4-200 | 21MP6-200 | 2.638 | 1.058 | ||
| 2-1/2″ | 21MP4-200 | 21MP6-200 | 2.875 | 1.571 | ||
| 3 “ | 21MP4-300 | 21MP6-300 | 3.070 | 1.634 | ||
| 4 “ | 21MP4-400 | 21MP6-400 | 3.155 | 1.734 | ||
Sanitube bevel seat fittings provide a secure, leak-tight connection using external Acme threads. Designed to work with a metal-to-metal seat, a bevel seat gasket may be used for additional security.
