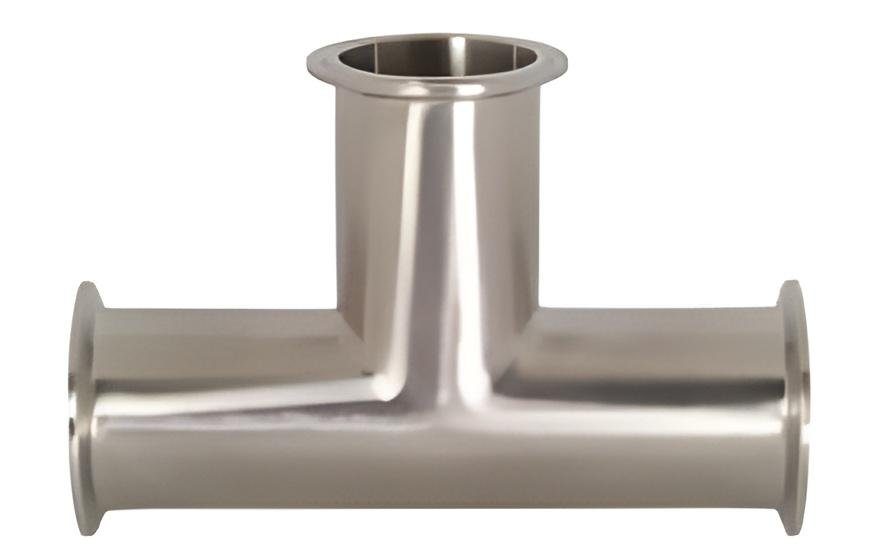

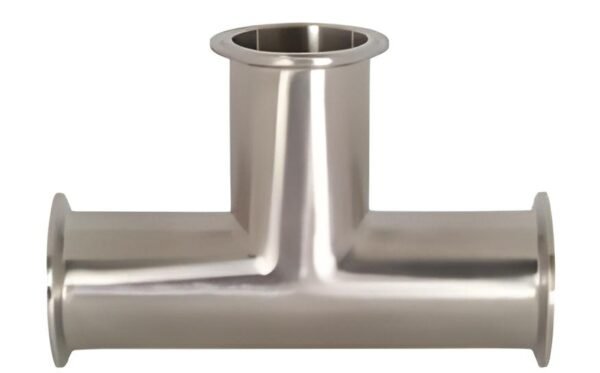

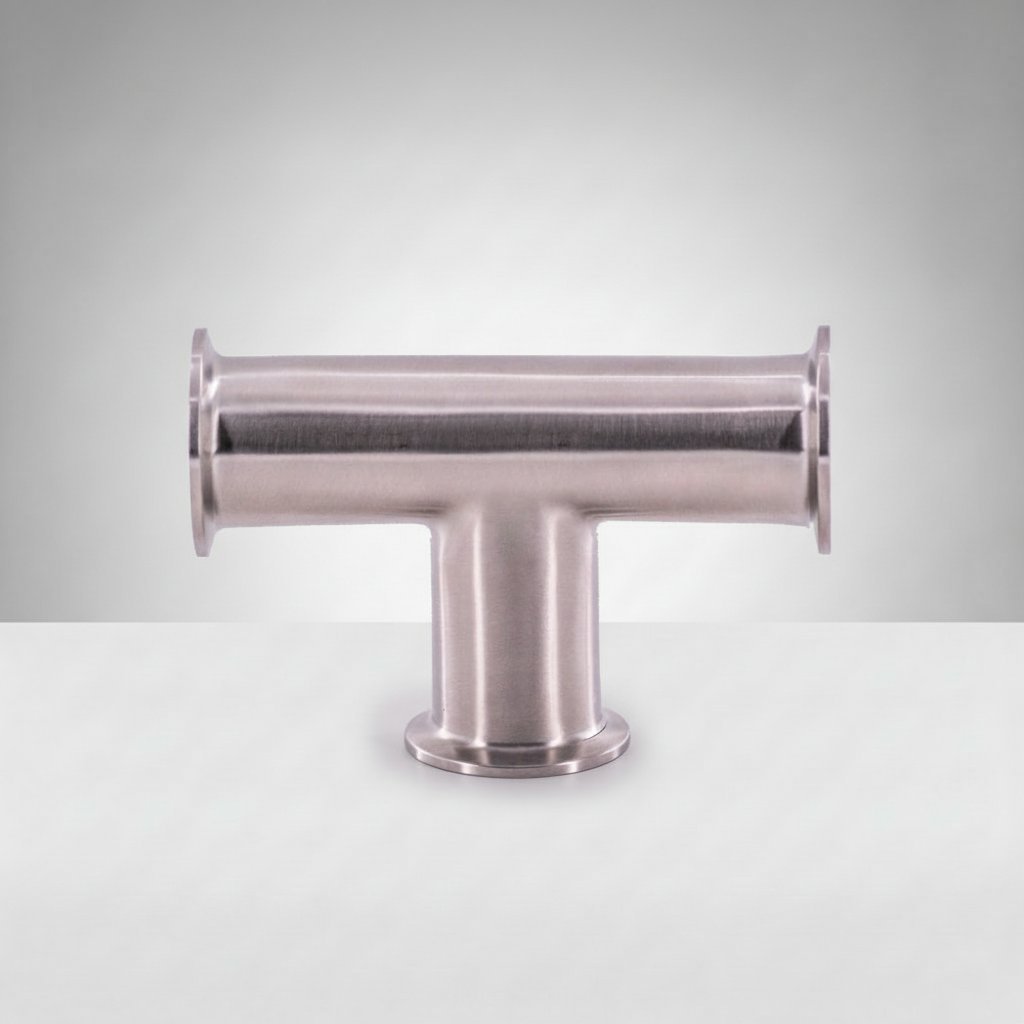

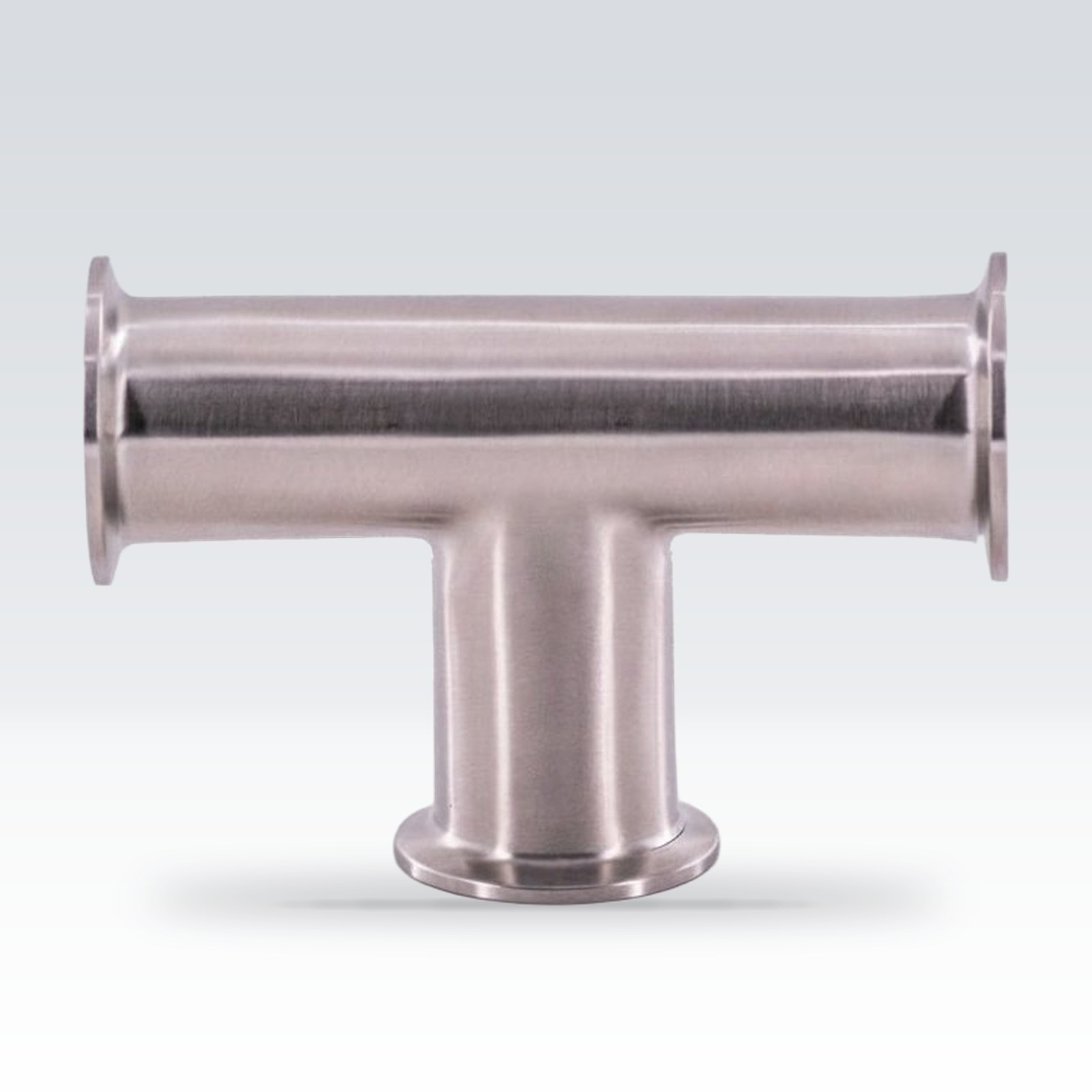

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection.
| Size (Tube OD) | Part Number | Dimensions | ||||
| 304L | 316L | A | B | |||
| 1/2″ | — | 7MP6-050 | 4.750 | 2.375 | ||
| 3/4Â “ | — | 7MP6-075 | 5.000 | 2.750 | ||
| 1 “ | 7MP4-100 | 7MP6-100 | 4.750 | 2.375 | ||
| 1-1/2″ | 7MP4-150 | 7MP6-150 | 5.500 | 2.750 | ||
| 2 “ | 7MP4-200 | 7MP6-200 | 7.000 | 3.500 | ||
| 2-1/2″ | 7MP4-250 | 7MP6-250 | 7.000 | 3.500 | ||
| 3 “ | 7MP4-300 | 7MP6-300 | 7.500 | 3.750 | ||
| 4 “ | 7MP4-400 | 7MP6-400 | 9.000 | 4.500 | ||
| 6 “ | 7MP4-600 | 7MP6-600 | 13.000 | 6.500 | ||
| 8 “ | 7MP4-800 | 7MP6-800 | 15.750 | 7.875 | ||
| Weight | 1 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
