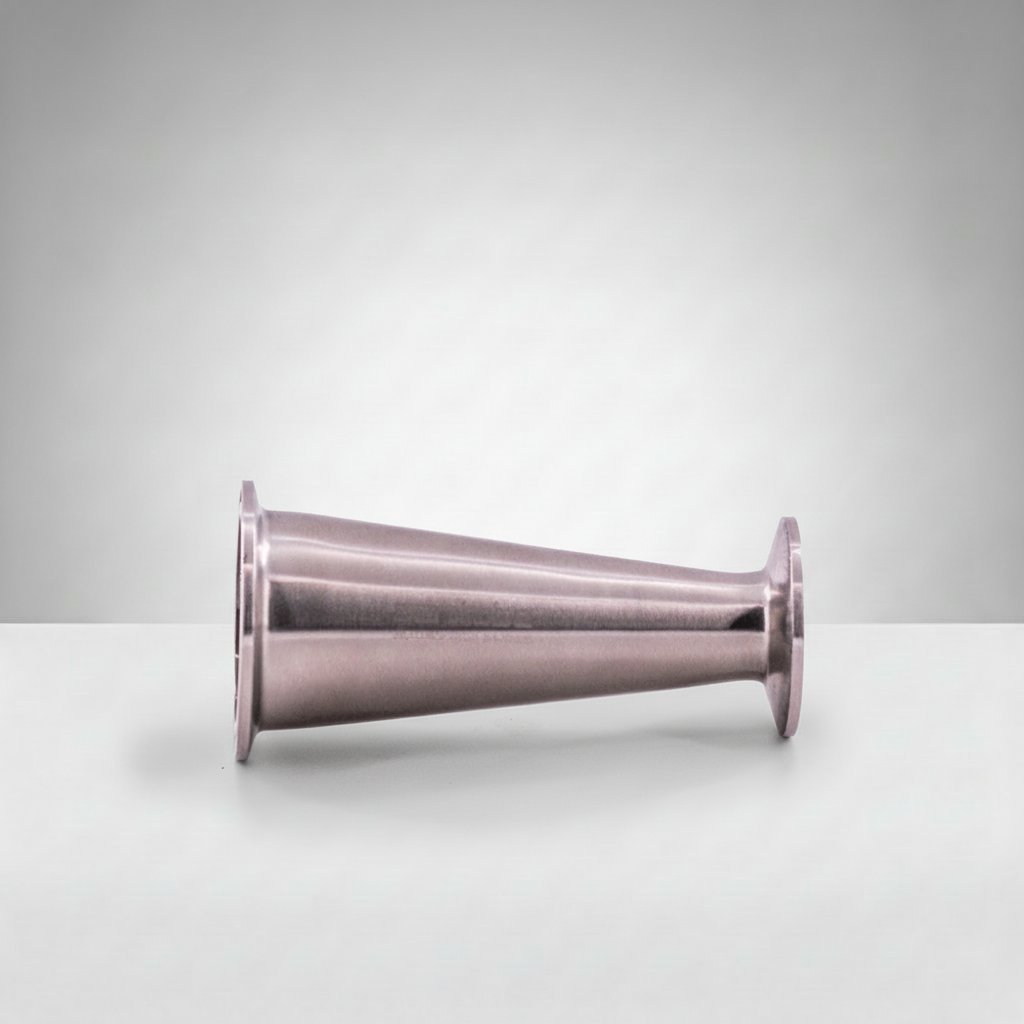

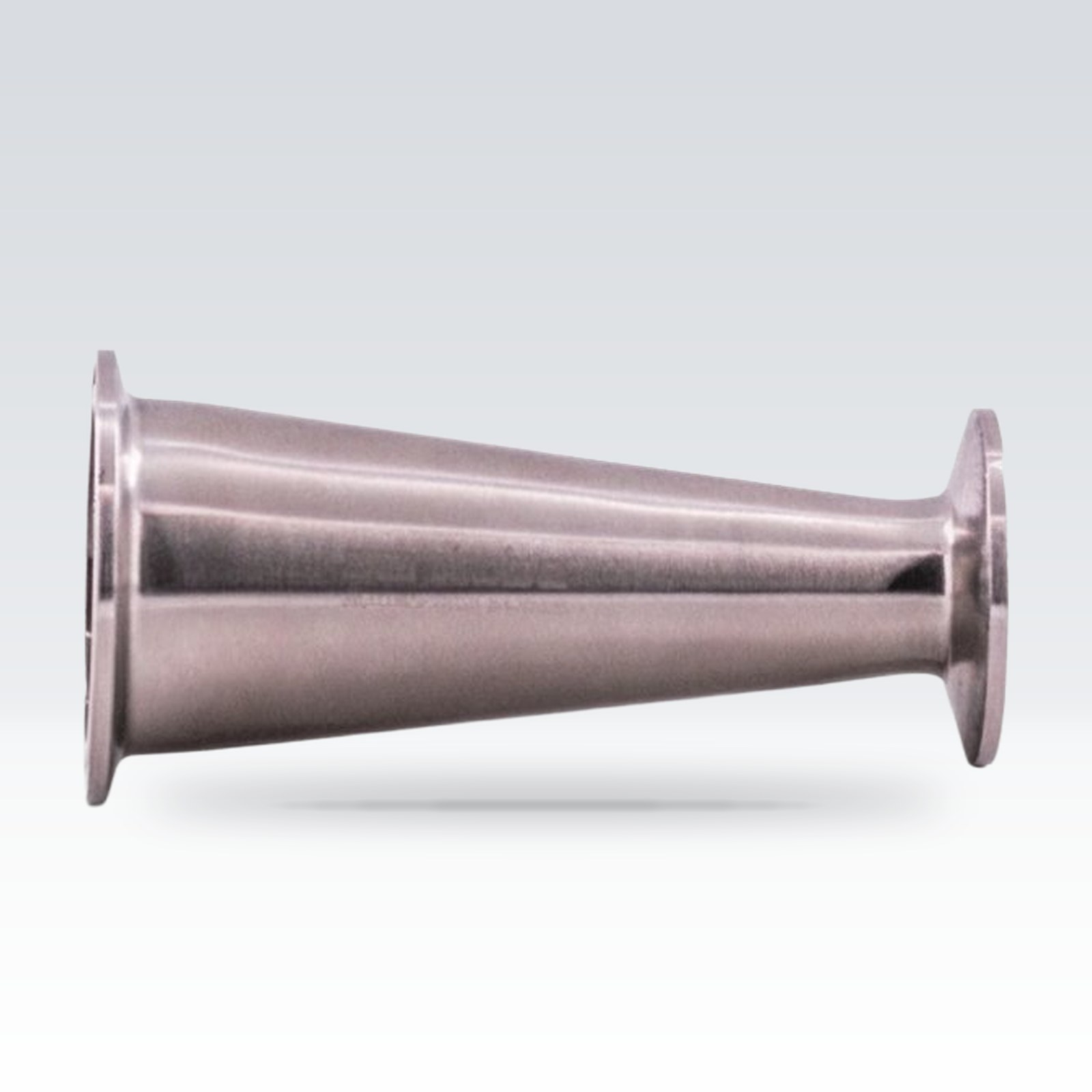

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection.
| Size (Tube OD) | Part Number | Dimensions | ||||
| 304L | 316L | A | ||||
| 3/4″ | x | 1/2″ | — | 3114MP6-075050 | 2.000 | |
| 1Â Â “ | x | 1/2″ | — | 3114MP6-100050 | 3.000 | |
| 1Â Â “ | x | 3/4″ | — | 3114MP6-100075 | 2.000 | |
| 1-1/2″ | x | 1/2″ | — | 3114MP6-150050 | 5.000 | |
| 1-1/2″ | x | 3/4″ | — | 3114MP6-150075 | 4.000 | |
| 1-1/2″ | x | 1Â Â “ | 3114MP4-150100 | 3114MP6-150100 | 3.000 | |
| 2Â Â “ | x | 1/2″ | 3114MP4-200050 | 3114MP6-200050 | 7.000 | |
| 2Â Â “ | x | 3/4″ | 3114MP4-200075 | 3114MP6-200075 | 6.000 | |
| 2Â Â “ | x | 1Â Â “ | 3114MP4-200100 | 3114MP6-200100 | 5.000 ADD | |
| 2Â Â “ | x | 1-1/2″ | 3114MP4-200150 | 3114MP6-200150 | 3.000 | |
| 2-1/2″ | x | 1-1/2″ | 3114MP4-250150 | 3114MP6-250150 | 5.000 | |
| 2-1/2″ | x | 2Â Â “ | 3114MP4-250200 | 3114MP6-250200 | 3.000 | |
| 3Â Â “ | x | 1Â Â “ | 3114MP4-300100 | 3114MP6-300100 | 9.000 | |
| 3Â Â “ | x | 1-1/2″ | 3114MP4-300150 | 3114MP6-300150 | 7.000 | |
| 3Â Â “ | x | 2Â Â “ | 3114MP4-300200 | 3114MP6-300200 | 5.000 | |
| 3Â Â “ | x | 2-1/2″ | 3114MP4-300250 | 3114MP6-300250 | 3.000 | |
| 4Â Â “ | x | 1Â Â “ | 3114MP4-400100 | 3114MP6-400100 | 11.125 | |
| 4Â Â “ | x | 1-1/2″ | 3114MP4-400150 | 3114MP6-400150 | 11.125 | |
| 4Â Â “ | x | 2Â Â “ | 3114MP4-400200 | 3114MP6-400200 | 9.125 | |
| 4Â Â “ | x | 2-1/2″ | 3114MP4-400250 | 3114MP6-400250 | 7.125 | |
| 4Â Â “ | x | 3Â Â “ | 3114MP4-400300 | 3114MP6-400300 | 5.125 | |
| 6Â Â “ | x | 2Â Â “ | 3114MP4-600200 | 3114MP6-600200 | 6.875 | |
| 6Â Â “ | x | 3Â Â “ | 3114MP4-600300 | 3114MP6-600300 | 60875 | |
| 6Â Â “ | x | 4Â Â “ | 3114MP4-600400 | 3114MP6-600400 | 7.000 | |
| 8Â Â “ | x | 3Â Â “ | 3114MP4-800300 | 3114MP6-800300 | 7.500 | |
| 8Â Â “ | x | 4Â Â “ | 3114MP4-800400 | 3114MP6-800400 | 7.500 | |
| 8Â Â “ | x | 6Â Â “ | 3114MP4-800600 | 3114MP6-800600 | 7.750 | |
| Weight | 1 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection.
