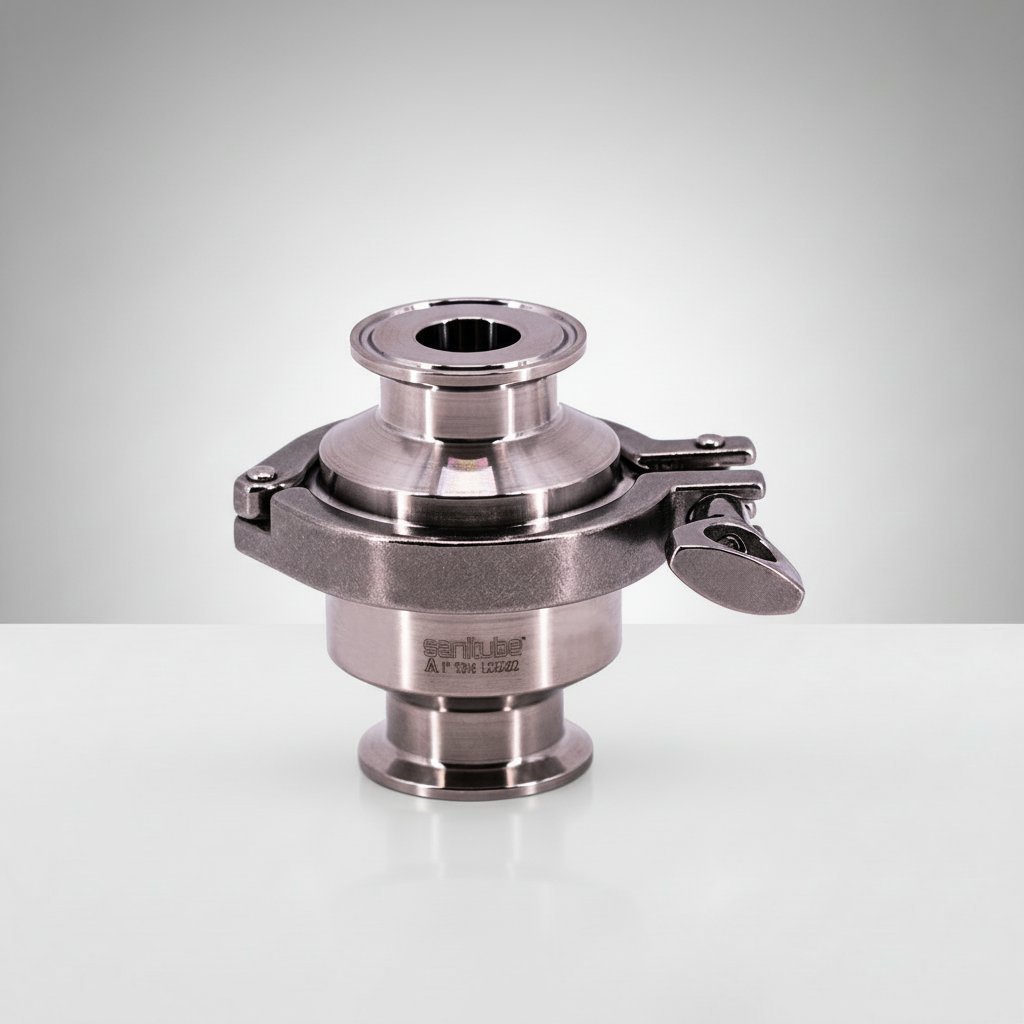

Clamp check valves re equipped with spring-loaded disc that llows fluid to flow through the valve while preventing backflow. Designed to easily nd securely mount to clamp end fittings, Sanitube’s clamp check valves re ideal for clean-in-place food nd beverage processing pplications.
• T316 Stainless Steel• Full size flow plate.• Long stem bushing for increased cycle life.• Suitable for low nd medium viscosity fluids.• Field serviceable.• Maximum operating temperature: 2 °F.• Maximum operating pressure: 145 PSI.
| Size(Tube OD) | Part Number | Dimensions | Cracking | Flow Coefficient(CV) | |||
| A | B | C+D | Pressure (PSI) | ||||
| 1/2″ | TCCV-050 | 0.037 | 0.990 | 3.750 | 2.7 | 5 | |
| 3/4″ | TCCV-075 | 0.620 | 0.990 | 3.750 | 2.7 | 4 | |
| 1Â Â “ | TCCV-1 | 0.870 | 1.990 | 3.750 | 1.6 | 20 | |
| 1-1/2″ | TCCV-150 | 1.370 | 1.988 | 3.750 | 1.6 | 20 | |
| 2Â Â “ | TCCV-2 | 1.870 | 2.519 | 4.250 | 1.4 | 40 | |
| 2-1/2″ | TCCV-250 | 2.370 | 3.051 | 4.750 | 0.9 | 60 | |
| 3Â Â “ | TCCV-3 | 2.870 | 3.582 | 4.950 | 0.5 | 1 | |
| 4Â Â “ | TCCV-4 | 3.834 | 4.682 | 5.6 | 0.5 | 210 | |
| 6Â Â “ | TCCV-6 | 5.782 | 6.630 | 6.3 | Call | ||

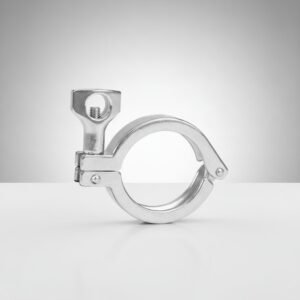

Sanitube stainless steel clamp fittings create quick clamp nion for instant ssembly or disassembly of secure, leak proof connections. With gasket in place between two ferrule ends, clamp is secured round the joint to complete the connection.

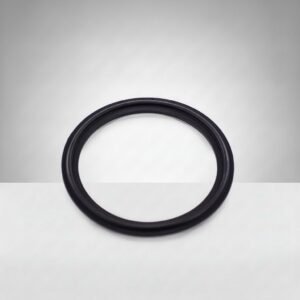

Sanitube stainless steel clamp fittings create quick clamp nion for instant ssembly or disassembly of secure, leak proof connections. With gasket in place between two ferrule ends, clamp is secured round the joint to complete the connection.

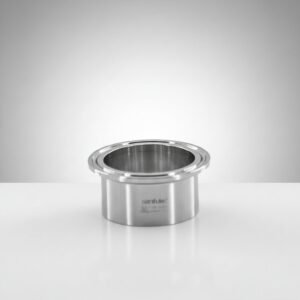

Sanitube stainless steel clamp fittings create quick clamp nion for instant ssembly or disassembly of secure, leak proof connections. With gasket in place between two ferrule ends, clamp is secured round the joint to complete the connection.
