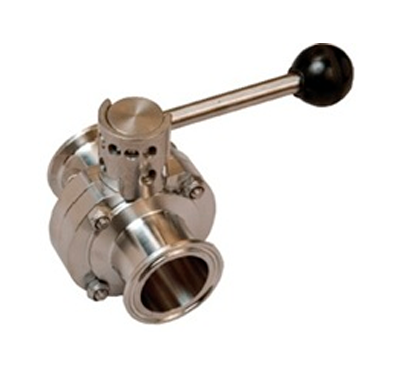

Clamp butterfly valves are suitable for clean-in-place food and beverage processing applications. Available with an EPDM or Viton® seat (refer to Sanitube’s Compound Selection Guide for compatibility information), they are suitable for low to high viscosity fluids at a wide range of operating temperatures.
• T316 Stainless Steel
• Information supplied based on water media at 68°F.
• All wetted surfaces are sanitary finished to < 32Ra.
• Field serviceable.
• Pinless Disc.
• Seat materials available in EPDM or Viton®.
• Minimal line pressure: 0.4 inches Hg vacuum.
• Operating temperature range: 15°F to 200°F.).
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||||||
| EPDM | Viton® | A | B | C | D | E | F | G | in/lbs | (PSI) | (CV) | |
| 1/2 “ | TCBFE-050 | TCBFV-050 | 4.400 | 2.800 | 1.400 | 0.900 | 0.370 | 3.100 | 20 | 140 | 7 | |
| 3/4″ | TCBFE-075 | TCBFV-050 | 4.400 | 2.800 | 1.400 | 0.900 | 0.620 | 3.100 | 20 | 140 | 7 | |
| 1 “ | TCBFE-100 | TCBFV-100 | 4.400 | 2.800 | 1.400 | 0.900 | 2.598 | 0.900 | 3.100 | 75 | 140 | 23 |
| 1-1/2″ | TCBFE-150 | TCBFV-150 | 4.400 | 2.800 | 1.400 | 0.900 | 2.756 | 1.400 | 3.100 | 130 | 140 | 80 |
| 2 “ | TCBFE-200 | TCBFV-200 | 4.400 | 3.100 | 1.400 | 0.900 | 2.756 | 1.900 | 3.900 | 165 | 140 | 230 |
| 2-1/2″ | TCBFE-250 | TCBFV-250 | 4.400 | 3.500 | 1.400 | 0.900 | 3.071 | 2.400 | 4.600 | 210 | 110 | 264 |
| 3 “ | TCBFE-300 | TCBFV-300 | 6.200 | 3.800 | 1.300 | 1.200 | 3.150 | 2.900 | 5.200 | 350 | 110 | 372 |
| 4 “ | TCBFE-400 | TCBFV-400 | 6.200 | 4.500 | 1.300 | 1.200 | 3.465 | 3.800 | 6.700 | 540 | 85 | 800 |
| 6 “ | TCBFE-600 | TCBFV-600 | 11.500 | 5.500 | 1.300 | 1.200 | 4.646 | 5.800 | 8.500 | 1550 | 60 | 1200 |
| 8 “ | TCBFE-800 | TCBFV-800 | 11.000 | 8.000 | 2.000 | 1.500 | 5.250 | 7.800 | 11.000 | 1650 | 60 | 2800 |
Two piece full port ball valves offer a cost effective repairable line solution where positive shut-off is necessary. Our fully encapsulated T316 stainless steel ball valves are easy to operate and can maintain and regulate high fluid pressures, volumes, and temperatures.
One piece reduced port ball valves offer a cost effective line solution where positive shut-off is necessary. Our fully encapsulated T316 stainless steel ball valves are easy to operate and can maintain and regulate high fluid pressures, volumes, and temperatures.
