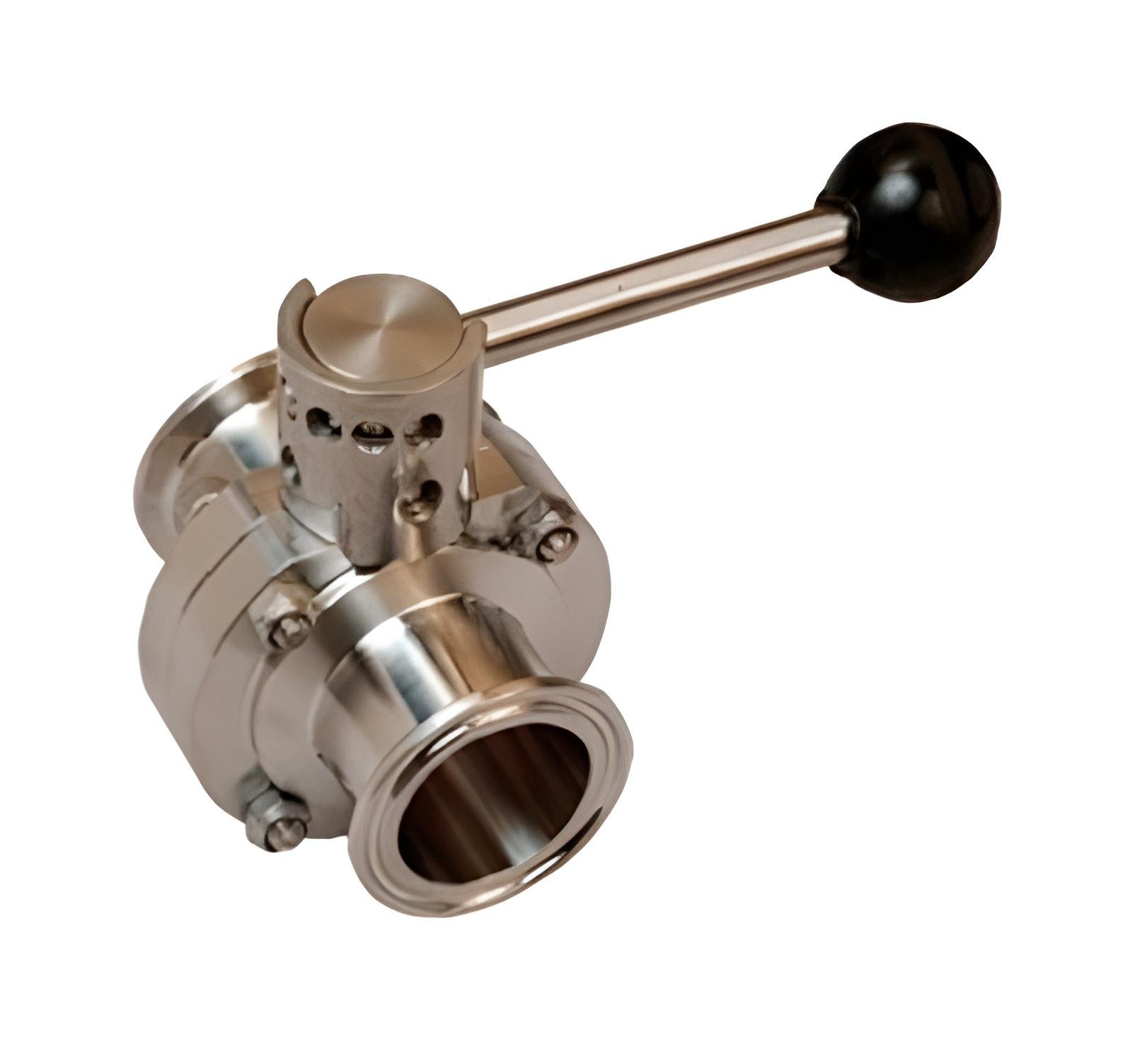

Clamp butterfly valves re suitable for clean-in-place food nd beverage processing pplications. Available with n EPDM or Viton® seat (refer to Sanitube’s Compound Selection Guide for compatibility information), they re suitable for low to high viscosity fluids t wide range of operating temperatures.
• T316 Stainless Steel• Information supplied based on water medi t 68°F.• All wetted surfaces re sanitary finished to < 32Ra.• Field serviceable.• Pinless Disc.• Seat materials vailable in EPDM or Viton®.• Minimal line pressure: .4 inches Hg vac m.• Operating temperature range: 15°F to 2 °F.).
| Size(Tube OD) | Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||||||
| EPDM | Viton® | A | B | C | D | E | F | G | in/lbs | (PSI) | (CV) | |
| 1/2 “ | TCBFE-050 | TCBFV-050 | 4.4 | 2.8 | 1.4 | 0.9 | 0.370 | 3.1 | 20 | 145 | 7 | |
| 3/4″ | TCBFE-075 | TCBFV-050 | 4.4 | 2.8 | 1.4 | 0.9 | 0.620 | 3.1 | 20 | 145 | 7 | |
| 1 “ | TCBFE-100 | TCBFV-100 | 4.4 | 2.8 | 1.4 | 0.9 | 2.598 | 0.9 | 3.1 | 75 | 145 | 23 |
| 1-1/2″ | TCBFE-150 | TCBFV-150 | 4.4 | 2.8 | 1.4 | 0.9 | 2.756 | 1.4 | 3.1 | 130 | 145 | 80 |
| 2 “ | TCBFE-200 | TCBFV-200 | 4.4 | 3.1 | 1.4 | 0.9 | 2.756 | 1.9 | 3.9 | 165 | 145 | 230 |
| 2-1/2″ | TCBFE-250 | TCBFV-250 | 4.4 | 3.5 | 1.4 | 0.9 | 3.071 | 2.4 | 4.6 | 210 | 145 | 264 |
| 3 “ | TCBFE-300 | TCBFV-300 | 6.2 | 3.8 | 1.3 | 1.2 | 3.150 | 2.9 | 5.2 | 350 | 145 | 372 |
| 4 “ | TCBFE-400 | TCBFV-400 | 6.2 | 4.5 | 1.3 | 1.2 | 3.465 | 3.8 | 6.7 | 540 | 145 | 8 |
| 6 “ | TCBFE-600 | TCBFV-600 | 11.5 | 5.5 | 1.3 | 1.2 | 4.646 | 5.8 | 8.5 | 1550 | 60 | 12 |
| 8 “ | TCBFE-800 | TCBFV-800 | 11. | 8. | 2. | 1.5 | 5.250 | 7.8 | 11. | 1650 | 60 | 28 |
