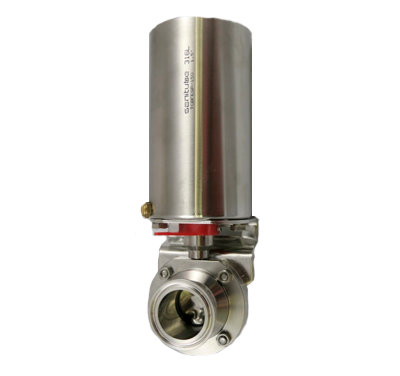

• T316 Stainless Steel
• Information supplied based on water media at 68°F.
• All wetted surfaces are sanitary finished to <32RA.
• Feild serviceable.
• Seat materials available in EPDM or Viton®.
• Minimum supply air line pressure 80 PSI.
• Operating temperature range: 15°F to 200°F.
• Valves have a 116 PSI close off pressure when using Spring Return Actuator, with 80 PSI of Air Pressure.
| Component | Description | Material | |||
| 1 | Plug | ABS | |||
| 2 | Bearing | PTFE | |||
| 3 | Seal Ring | Silastic | |||
| 4 | Disc | CFB/CF8M | |||
| 5 | Body | CFB/CF8M | |||
| 6 | Bolt | 304 | |||
| 7 | Nut | 304 | |||
| 8 | Washers | 304 | |||
| 9 | Brackets | 304 | |||
| 10 | Coupling Shaft | 304 | |||
| 11 | Bolt | 304 | |||
| 12 | Pneumatic Device | ||||
| Actuator Specifiations | Double Acting (Replace “SR” Part Code Suffix with “DA”) | Spring Return | |||
| Weight | 5.1 | 6.0 | |||
| Air Consumption (Down Stroke-CW) | 8.5 | 8.5 | |||
| Air Consumption (Up Stroke-CCW) | 20 | 18.5 | |||
| Temperature Rating Maximum | 200°F | 200°F | |||
| Temperature Rating Minimum | 15°F | 15°F | |||
| Output Torque (in-lbs) | 350 | 350 | |||
| Maximum Pressure Rating (psi) | 120 | 120 | |||
| Supply Pressure Required (psi) | 80-100 | 80-100 | |||
| Diameter (inches) | 3.35 | 3.35 | |||
| Height (inches) | 5.83 | 5.83 | |||
| Air Fitting Ports | 1/8°FNPT | 1/8°FNPT | |||
| Size (NPS) | Part Number | Dimensions | ||||
| EPDM | VITON | Clamp to Clamp | Body Width | Overall Height | Height Center to Top | |
| 1 “ | TCBFESR-100 | TCBFVSR-100 | 2.598 | 3.100 | 10.250 | 8.563 |
| 1-1/2″ | TCBFESR-150 | TCBFVSR-150 | 2.756 | 3.100 | 10.250 | 8.563 |
| 2 “ | TCBFESR-200 | TCBFVSR-200 | 2.756 | 3.900 | 11.000 | 9.000 |
| 2-1/2″ | TCBFESR-250 | TCBFVSR-250 | 3.071 | 4.600 | 11.375 | 9.250 |
| 3 “ | TCBFESR-300 | TCBFVSR-300 | 3.150 | 5.200 | 12.250 | 10.250 |
| 4 “ | TCBFESR-400 | TCBFVSR-400 | 3.465 | 6.700 | 13.500 | 10.250 |
| Weight | 1 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
