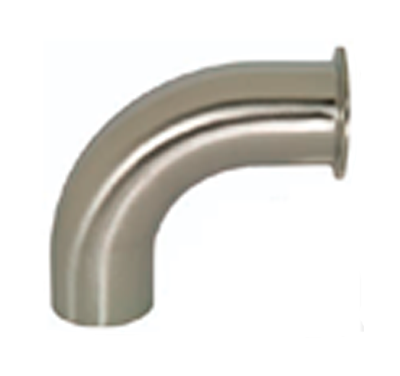

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection.
| Size (Tube OD) | Part Number | Dimensions | |||||
| 304L | 316L | A | B | Wall | |||
| 1/2 “ | — | L2CM6-050 | 3.500 | 3.000 | 0.065 | ||
| 3/4 “ | — | L2CM6-075 | 3.500 | 3.000 | 0.065 | ||
| 1 “ | L2CM4-100 | L2CM6-100 | 2.562 | 2.062 | 0.065 | ||
| 1-1/2″ | L2CM4-150 | L2CM6-150 | 3.438 | 2.937 | 0.065 | ||
| 2 “ | L2CM4-200 | L2CM6-200 | 4.562 | 4.062 | 0.065 | ||
| 2-1/2″ | L2CM4-250 | L2CM6-250 | 5.688 | 5.187 | 0.065 | ||
| 3 “ | L2CM4-300 | L2CM6-300 | 6.812 | 6.312 | 0.065 | ||
| 4 “ | L2CM4-400 | L2CM6-400 | 8.937 | 8.312 | 0.083 | ||
| 6 “ | L2CM4-600 | L2CM6-600 | 12.375 | 11.500 | 0.109 | ||
| Weight | 1 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection.
