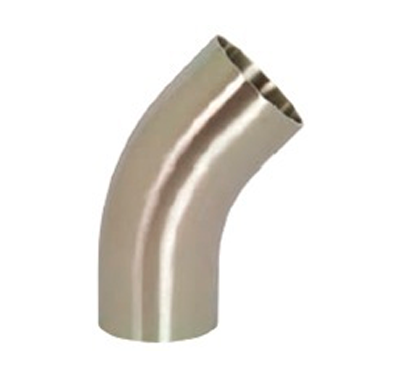

Manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications, Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.
| Size (Tube OD) |
Part Number | Dimensions | |||||
| 304 | 316L | A | R | Wall | |||
| 1/2″ | — | 2WK6P-050 | 0.466 | 1.125 | 0.065 | ||
| 3/4″ | — | 2WK6P-075 | 0.466 | 1.125 | 0.065 | ||
| 1 “ | 2WK4P-100 | 2WK6P-100 | 0.625 | 1.500 | 0.065 | ||
| 1-1/2″ | 2WK4P-150 | 2WK6P-150 | 0.937 | 2.250 | 0.065 | ||
| 2 “ | 2WK4P-200 | 2WK6P-200 | 1.250 | 3.000 | 0.065 | ||
| 2-1/2″ | 2WK4P-250 | 2WK6P-250 | 1.562 | 3.750 | 0.065 | ||
| 3 “ | 2WK4P-300 | 2WK6P-300 | 1.875 | 4.500 | 0.065 | ||
| 4 “ | 2WK4P-400 | 2WK6P-400 | 2.500 | 6.000 | 0.083 | ||
| 6 “ | 2WK4P-600 | 2WK6P-600 | 3.750 | 9.000 | 0.109 | ||
| 8 “ | 2WK4P-800 | 2WK6P-800 | 5.000 | 12.000 | 0.109 | ||
| Alloy |
|---|
Sanitube bevel seat fittings provide a secure, leak-tight connection using external Acme threads. Designed to work with a metal-to-metal seat, a bevel seat gasket may be used for additional security.
Sanitube bevel seat fittings provide a secure, leak-tight connection using external Acme threads. Designed to work with a metal-to-metal seat, a bevel seat gasket may be used for additional security.
