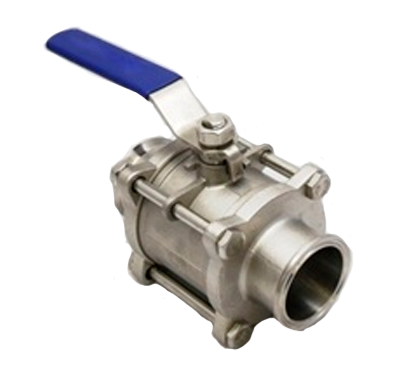

Three Piece Non-Encapsulated Clamp Ball Valve

$0.00

Want to pick up? Check Availability
SKU TCBV Category Tags ,

Shipping

The advanced design of three piece ball valves allows for removing and servicing the center part of the valve containing the ball, stem, and seats without disconnecting the valve body from the line. Ideal for clean-in-place food and beverage processing applications, our fully encapsulated T316 stainless steel ball valves are easy to operate and can maintain and regulate high fluid pressures, volumes, and temperatures.

• T316 Stainless Steel.
• Clamp end.
• Body Working Pressure: 1000 PSI WOG.
•  Clamp End Working Pressure: 200 PSI WOG.
• Working Temp.: -4°F to 300°F.
• Investment casting.
• Blow-out proof stem.
• Cavity Filled.
• Locking handle.
• Full port design.
• Other configurations available upon request. Call Sanitube for information.



Size (Tube OD)Part NumberDimensionsTorque (in/lb)Weight (lbs)
ABCBreakawayAction
1/2″TCBV-0500.3805.5603.75055201.4
3/4″TCBV-0750.6205.5603.93771321.8
1″TCBV-1000.8705.5604.135101582.6
1-1/2″TCBV-1501.3707.4104.9202211154.6
2″TCBV-2001.8807.4105.9053451158.5
2-1/2″TCBV-2502.37010.2407.50088328817.8
3″TCBV-3002.87010.2408.66083023028.2
4″TCBV-40012.0003.8409.512132334541.4
ComponentDescriptionMaterial
1BodyT316 Stainless Steel
2CapT316 Stainless Steel
3BallT316 Stainless Steel
4SeatPTFE
5SealPTFE
6Thrust WasherPTFE
7Stem PackingPTFE
8Gland NutT304 Stainless Steel
9Spring WasherT304 Stainless Steel
10Stem NutT304 Stainless Steel
11StemT316 Stainless Steel
12Spring WasherT304 Stainless Steel
13NutT304 Stainless Steel
14BoltT304 Stainless Steel
15HandleT304 Stainless Steel
16Handle SleevePVC
17Locking DeviceT304 Stainless Steel
