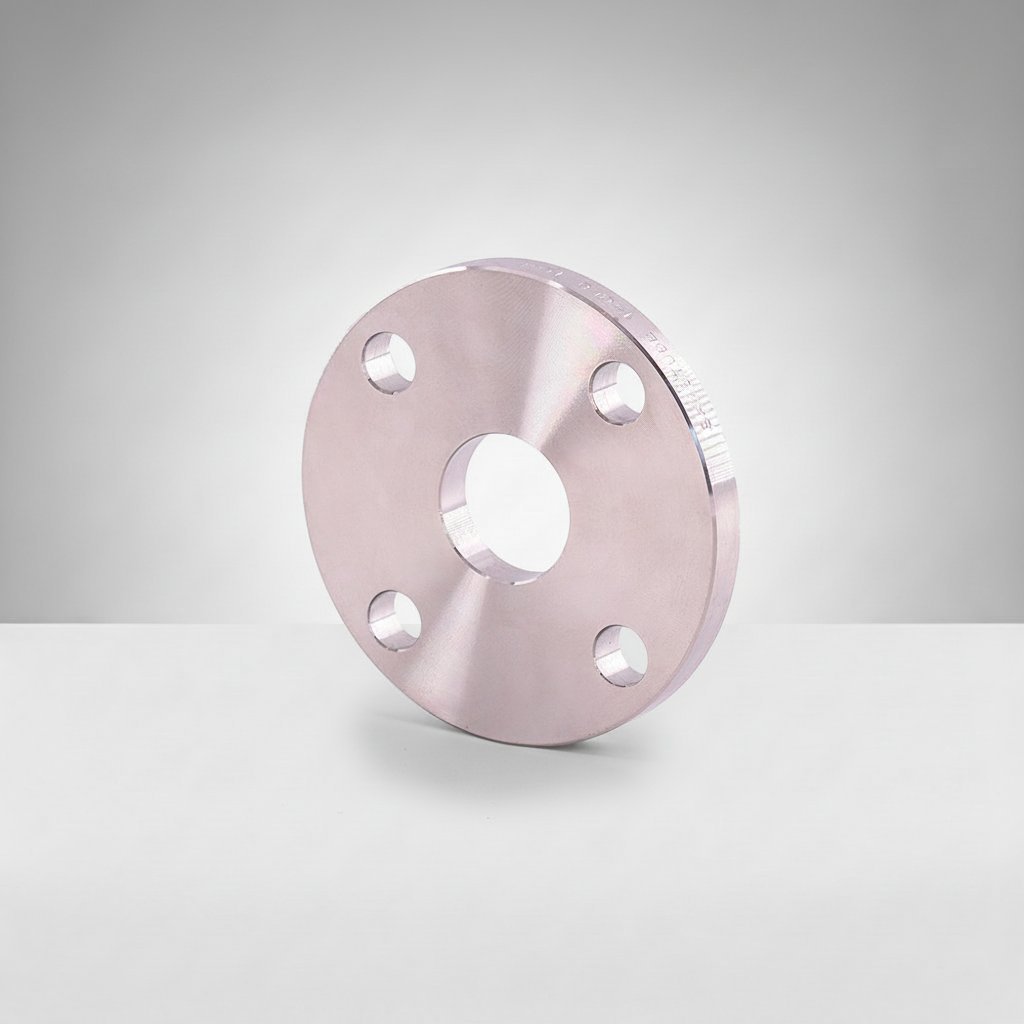

Sanitube plate flanges re engineered to meet ANSI/ASME Class 15 specifications. Available in either tube (OD) or pipe (NPS) sizes, Sanitube flanges re backed by our 1 % q lity g rantee.
• ASME/ANSI Class 15 flange.
| Size(Tube OD) | Part Number | Dimensions | Holes | |||||||
| 304 | 316L | A | B | C | D | Diameter | Count | |||
| 1 “ | 38SL4-1 | 38SL6-1 | 4.250 | 0.5 | 1.031 | 3.125 | 5/8″ | 4 | ||
| 1-1/2″ | 38SL4-150 | 38SL6-150 | 5. | 0.5 | 1.531 | 3.875 | 5/8″ | 4 | ||
| 2 “ | 38SL4-2 | 38SL6-2 | 6. | 0.5 | 2.031 | 4.750 | 3/4″ | 4 | ||
| 2-1/2″ | 38SL4-250 | 38SL6-250 | 7. | 0.5 | 2.531 | 5.5 | 3/4″ | 4 | ||
| 3 “ | 38SL4-3 | 38SL6-3 | 7.5 | 0.5 | 3.031 | 6. | 3/4″ | 4 | ||
| 4 “ | 38SL4-4 | 38SL6-4 | 9. | 0.5 | 4.031 | 7.5 | 3/4″ | 8 | ||
| 5 “ | 38SL4-5 | 38SL6-5 | 10. | 0.5 | 5.031 | 8.5 | 3/4″ | 8 | ||
| 6 “ | 38SL4-6 | 38SL6-6 | 11. | 0.5 | 6.031 | 9.5 | 7/8″ | 8 | ||
| 8 “ | 38SL4-8 | 38SL6-8 | 13.5 | 0.5 | 8.031 | 11.750 | 7/8″ | 8 | ||
| 1 “ | 38SL4-1 | 38SL6-1 | 16. | 0.5 | 10.031 | 14.250 | 1 “ | 12 | ||
| 12 “ | 38SL4-12 | 38SL6-12 | 19. | 0.5 | 12.063 | 17. | 1 “ | 12 | ||
Sanitube bevel seat fittings provide secure, leak-tight connection sing external Acme threads. Designed to work with metal-to-metal seat, bevel seat gasket may be sed for dditional security.
